Product Details

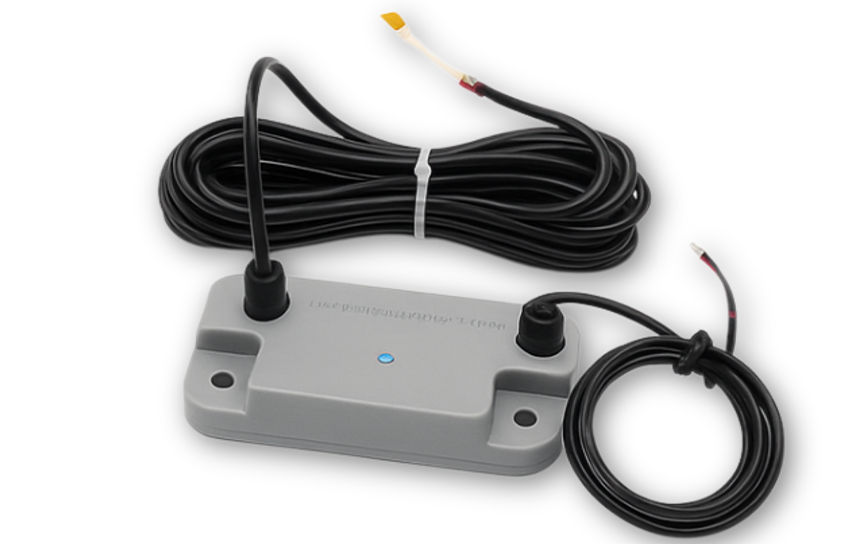

Strain Gauge (SG-1)

An easy-to-install strain-gauge-based mechanical solution for spring suspensions that gives more durability and accuracy in measuring payload in all weather conditions.

Features

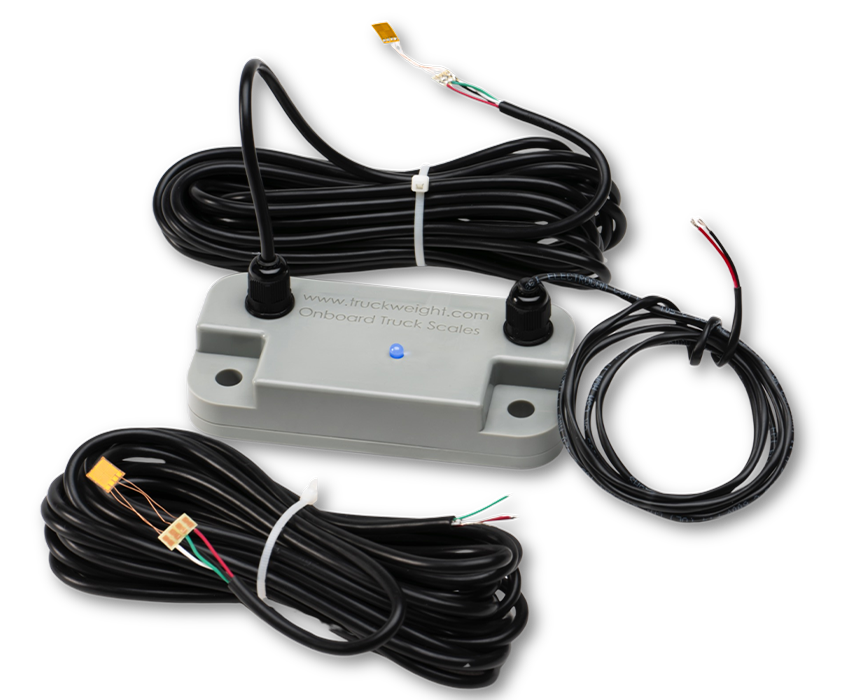

Strain Gauge (SG-2)

An easy-to-install strain-gauge-based mechanical solution for spring suspensions that gives more durability and accuracy in measuring payload in all weather conditions.

Features

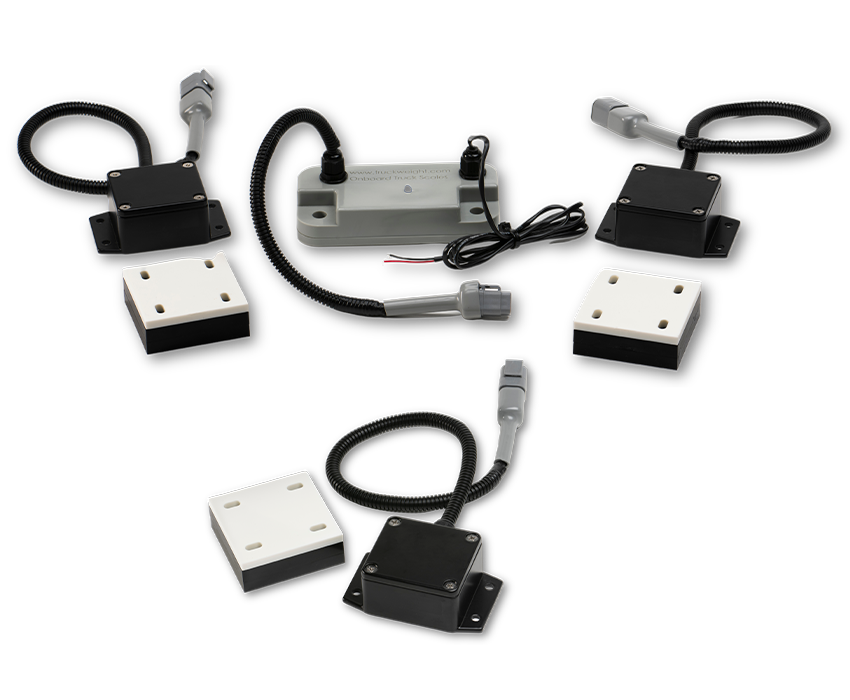

Military Grade Sensor

The ultimate sensor with zero wear & tear and maintenance and maximum durability. Ideal for spring suspension trailers, dump trucks, refuse trucks, Class 4, 5, 6, 7, and 8 commercial trucks, tractor trailers and fleets with air or non-air suspension.

Features

Air Suspension Sensor

Low cost, patented solutions for vehicles with air suspensions that calculates accurate axle and gross vehicle weight readings in all weather conditions based on temperature and pressure change in the suspension.

Features

TruckWeight Analytics

Maximize return on your scale investments and save time with efficient management of a large fleet by reducing unnecessary coordination time between driver, backoffice & maintenance with the help of our cutting edge analytics solution that enables storing, sharing, verifying and analyzing weight data using IOT

Features

Handheld Display

TruckWeight quality Display is simple to use with touch screen and rechargeable lithium ion battery. It can be ordered with or without a mount. Display shows axle weights, gross vehicle weight and Net weight with truck and trailer ID. Unit can be ordered with or without GPS. Display can drop and hook trailers in seconds. Display can be order with serial printer option.

Features

What do I need to Complete my Rig

Know what you need to buy for your rig by using the information below based on common vehicle configurations

Common types Of Configuration Type of Sensor Needed No. of Sensor Needed
Air-ride tractor and trailer Air suspension sensor Wireless Handheld 2 1
Air ride tractor Air suspension sensor Wireless Handheld 1 1
Air ride spring trailer Mechanical sensor Wireless Handheld 1 1
Straight truck mechanical suspension Mechanical sensor Wireless Handheld 2 1
Straight truck air suspension Air suspension sensor Mechanical sensor Wireless Handheld 1 1 1
B-train air ride Air suspension sensor Wireless Handheld 3 1
Heavy haul air ride Air suspension sensor Mechanical sensor Wireless Handheld 3 1 1
Class 3 Utility truck Mechanical sensor Wireless Handheld 1 1
Class 5 Utility truck Mechanical sensor Wireless Handheld 3 1
Common Truck and Trailer ConfigurationsSensors NeededNo. of Sensors Needed
Air-ride Tractor — Air TrailerAir Sensor (one sensor per axle group), Display (mount optional)2, 1
Air-ride Tractor — Spring TrailerAir Sensor, Strain Gauge Sensor SG-2, or MG-2
Display (mount optional)
1, 1
Air-ride TractorAir Sensor, Display (mount optional)1, 1
Super Duty Trucks (Dump Trucks, Roll-Off Trucks, Hydrovac Trucks with spring suspension on the drives like Camelback, Tuft Track, other spring suspensions)Military Grade Sensor MG-4, Display (mount optional)2, 1
Dump Trucks – Roll-Off Trucks, Hydrovac Trucks with Walking Beam and Chalmers suspension on the drivesDrives: Strain Gauge Sensor SG-2, Front: Strain Gauge Sensor SG-1, Display (mount optional)1, 1
B-Train air-rideAir Sensor, Display3, 1
Spring TrailerMilitary Grade Sensor MG-21
Air-ride TrailerAir Sensor1
Ford Transit and Dodge ProstarMilitary Grade Sensor MG-1 or MG-2, Wireless Handheld1, 1

Add-ons

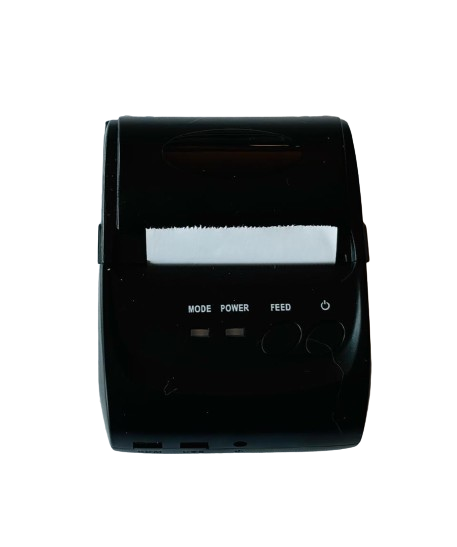

Printer for Handheld

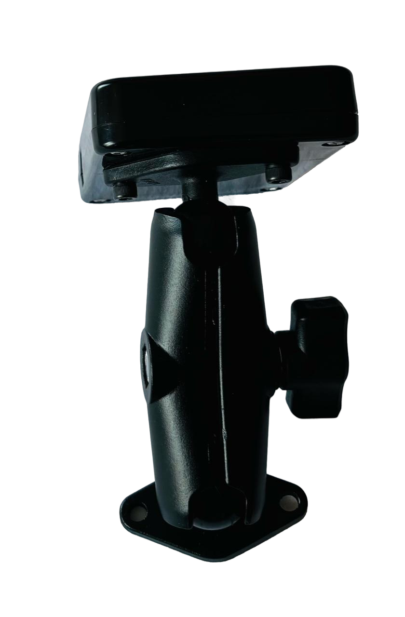

Mount for Handheld
